Air heater Master BV 290E
Air flow [m3/h]: 3300
Fuel consumption [kg/h]: 6,8
Diameter of the chimney connection [mm]: 150
Net weight [kg]: 103

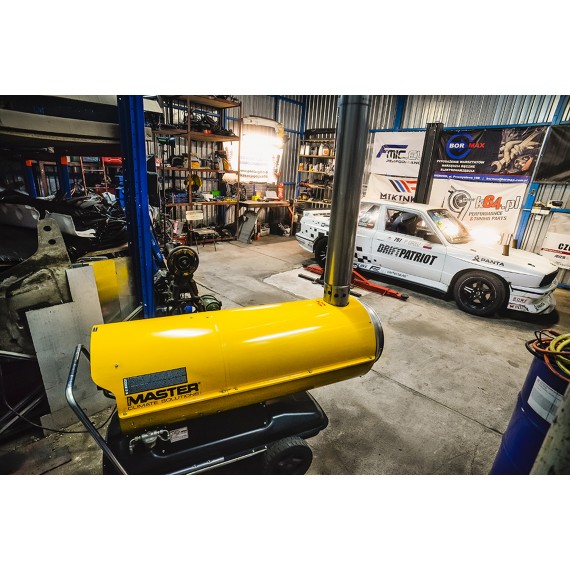

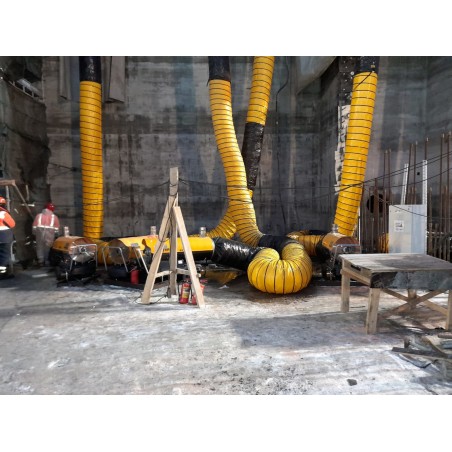

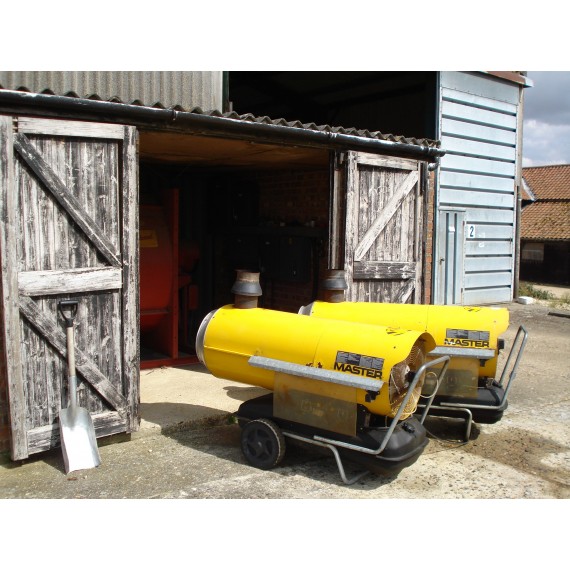

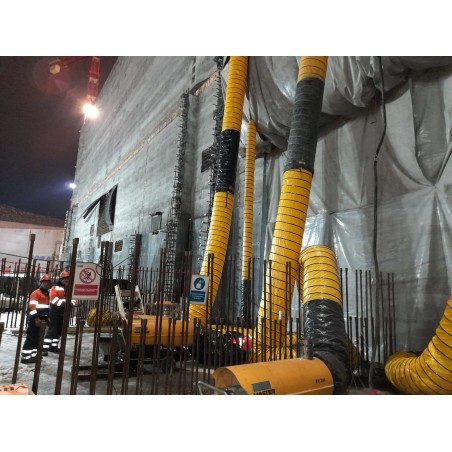

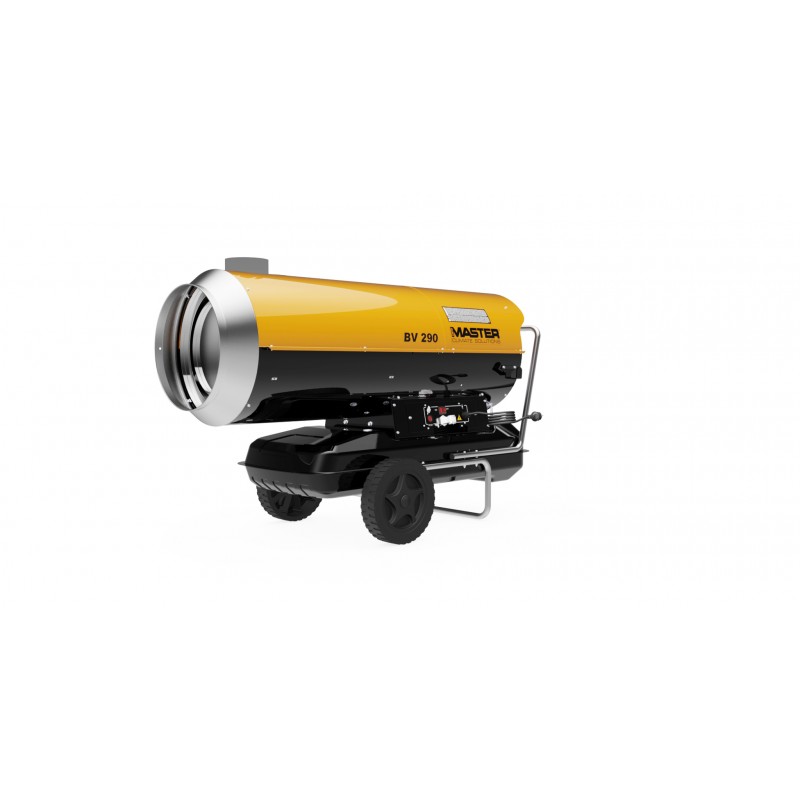

Oil heater with flue MASTER BV 290 E is a portable, professional, fully automatic oil heater. The combustion chamber is made of stainless steel. Heater case is isolated, so that does not heat up during use. The heaters are equipped with wheels, coasters and handrails to facilitate their transport. All devices have a built-in oil tank. It is possible to connect the room thermostat. Power for the fan and automation - 230V. Heaters are ideal for heating production halls, warehouses, livestock buildings, construction in progress, wash stations, diagnostic and wulkanizacjach, tents and workshops. Exchangers heaters have combustion chamber and a fireplace that allows smoke outlet on the outside, so warm air is put into the room is clean.
Advantages heater:
- Electronic flame control
- Overheat thermostat
- Ability to connect room thermostat
- Combustion chamber is made of stainless steel
- Durable exterior finish
- Standard oil tank
- Set of of wheels in the standard
- Strong and durable construction
- Housing does not heat up
- Easy to use and maintain
- High airflow
Data sheet
- Fuel type
- olej napędowy / olej opałowy
- Efficiency [kW]
- 85
- Efficiency [Btu/h]
- 29000
- Efficiency [Kcal/h]
- 73100
- Air flow [m<sup>3</sup>/h]
- 3300
- Fuel consumption [kg/h]
- 8,1
- Rated current [A]
- 4,6
- Power [V/Hz]
- 230/50
- Tank capacity [l]
- 105
- Thermostat control
- możliwa - TH 5
- Diameter of the chimney connection [mm]
- 150
- Net weight [kg]
- 103
- Gross weight [kg]
- 126
- Blast opening [mm]
- 400
- Czas pracy na pełnym zbiorniku [h]
- 13
- Ochrona
- IP 44
