copy of Indirect heater AIR-BUS BV 690 FS
  • copy of Indirect heater AIR-BUS BV 690 FS
  • copy of Indirect heater AIR-BUS BV 690 FS
  • copy of Indirect heater AIR-BUS BV 690 FS
  • copy of Indirect heater AIR-BUS BV 690 FS

copy of Indirect heater AIR-BUS BV 690 FS

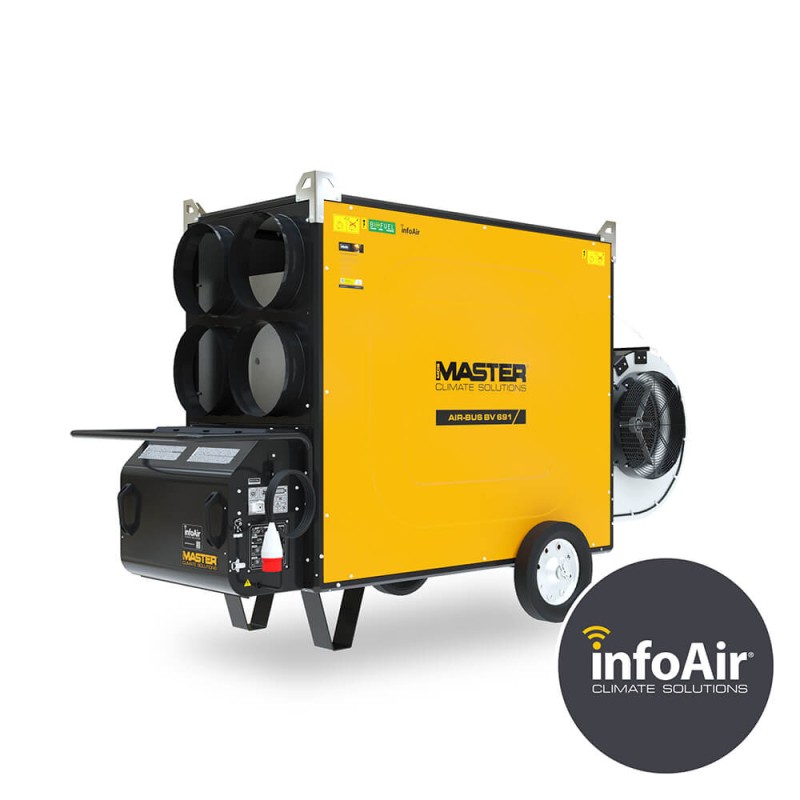

Master BV 691S

Efficiency [kW]: 220
Air flow [m3/h]: 12500
Fuel consumption [kg/h]: 15,3
Power [V/Hz]: 230/50 lub wersja 400/50
Net weight [kg]: 325

31,249.00 zł
Tax included
Quantity

Master BV 691S
MASTER
View all products of MASTER

Indirect oil heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event’s tents, food preparation areas or exhibition halls. They can be used with flexible hoses that make the warm air be spread around easily.



Model description:

  • Axial fan
  • Achieved pressure 100 Pa
  • Possible connection to an optional room thermostat

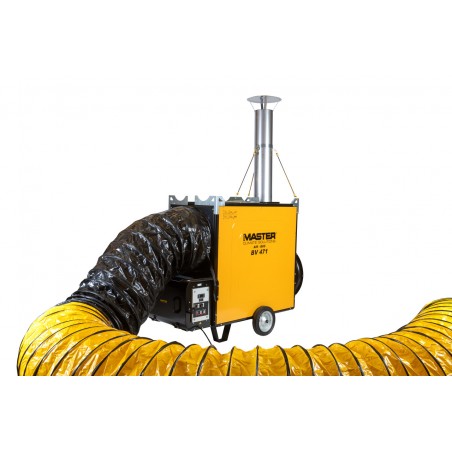

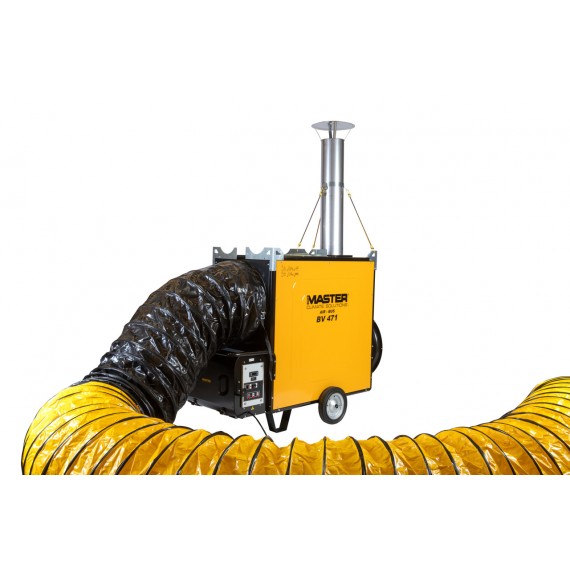

  • Possible connection to 4, 2 or 1 flexible tubes
  • Possibility of flue gas exhaust

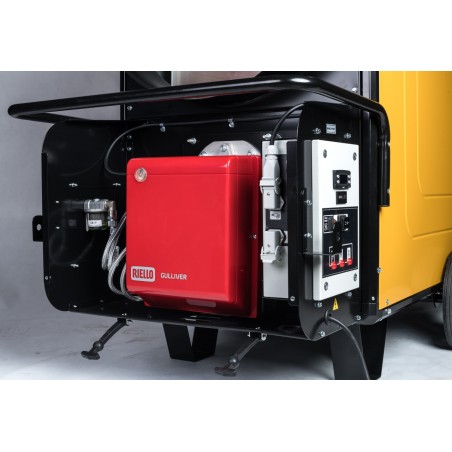

  • Separate oil burner

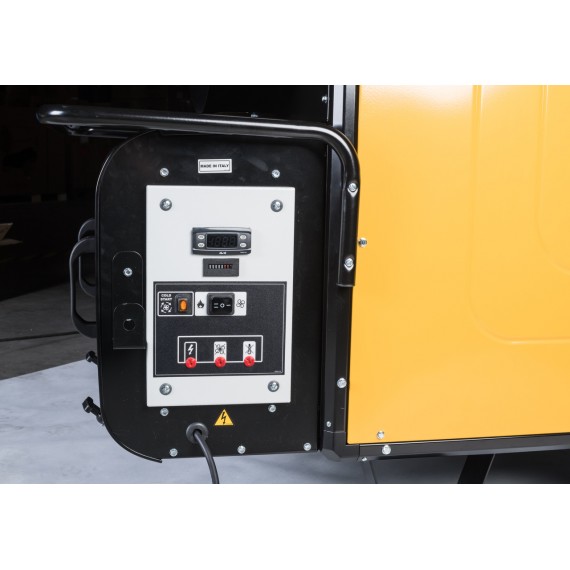

  • Summer-Winter switch for ventilation only
  • Fuel pre-heating
  • Electronic flame control with photocell
  • Fan-Limit thermostat with automatic reset
  • Limit thermostat with manual reset
  • Two oil filters: oil pump filter and suction filter
  • Suction filter with heating option as a standard
  • High efficiency heat exchanger
  • Stainless steel combustion chamber
  • Trolley included

Data sheet

Fuel type
olej napędowy
Efficiency [kW]
225
Efficiency [Btu/h]
768000
Efficiency [Kcal/h]
193500
Air flow [m<sup>3</sup>/h]
12800
Fuel consumption [kg/h]
21,44
Rated current [A]
12,6
Power [V/Hz]
220-240
Tank capacity [l]
brak
Thermostat control
możliwa - TH 5 lub THD
Diameter of the chimney connection [mm]
200
Net weight [kg]
380
Gross weight [kg]
410
Blast opening [mm]
4 x 320 lub 1 x 700
Dimensions - L. X width. X height. [mm]
2340x998x1548
Ochrona
IP 55
